100% ORIGINAL AND QUALITY

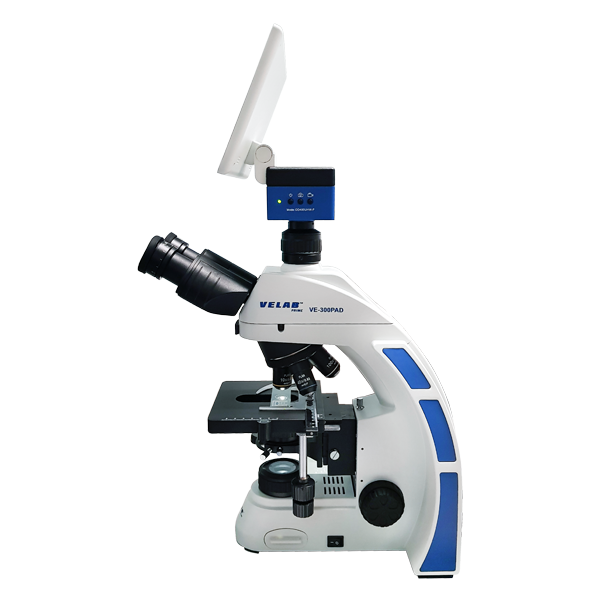

VE-300PAD Digital Microscope with Integrate tablet
Add to wishlist
Added to wishlist
CODE: VE-300PAD
Categories: Prime Microscope
12 MONTHS GUARANTEE
- Description
- TECHNICAL DATA
- Main features
- Applications
- ACCESORIES INCLUDED
- WARRANTY

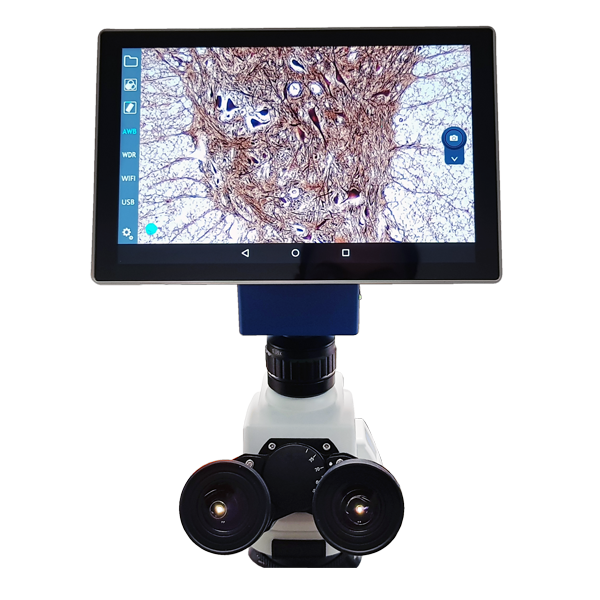

Biological microscope designed for professional use. Used to identifying and analyzing substances and biological cultures in microbiology, biology, medicine and pathology. Ideal for research, higher education and routine clinical laboratory work. Equipped with the VESCOPEPAD 300 tablet, Android tablet. Includes 10.1 touch screen and the VELAB camera application for editing images.
|
EYEPIECES: PL 10X/20 mm
|
| NOSEPIECE: Quadruple |
| OBJECTIVES: 4X, 10X, 40X (S), 100X (S) (oil) |
| OPTICAL SYSTEM: Infinity-Corrected plan achromatic |
| STAGE: Double layer with coaxial movement X-Y, 150 x 140 mm / 5.9" x 5.5" |
| CONDENSER: Abbe, N.A. 1.25, with slot additional settings ( not included) |
| DIAPHRAGM: Iris type filter holder |
| FOCUS: Coarse and fine anti-slip control knob (precision 0.001 mm) |
| ILUMINATION: Kohler 3W LED |
|
DIMENSIONS:
|
|
PPOWER SUPPLY: 110/240V, 50/60 Hz, AC Adapter. |
- Diopter adjustment in both eyepieces.
- Interpupillary distance of 50 - 75 mm.
- Heads inclined at 30 °.
- Stative, robust and reinforced. Easy to transport.
- Plates with vernier, millimeter scale and calipers.
- Objectives with colored rings.
- Lighting with intensity adjustment.
- Gemel type trinocular head.
- Equipped condenser for optional configurations (not included).
- Image transmission to various WiFi devices.
- Tablet equipped with basic editing and measurement software.
- Capture photo and video independently via WiFi.
- Education: Upper grade levels
- Research
- Clinical
- SD card
- C-mount type adapter
- USB Cable.
- HDMI Cable.
- Software
10-years limited warranty
