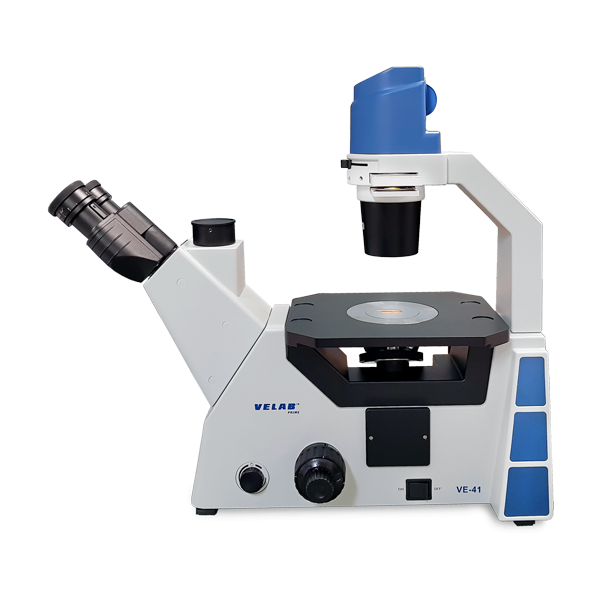

VE-41 Trinocular Inverted Microscope

Professional inverted microscope with phase contrast emphasizes cellular outlines and internal structure to meet research needs. Ideal for different samples containers such as cultivationbottles, Petri dishes and microplates.

Ideal for cell cultures observation without previous preparation, activity and growth monitoring, as well as of biologics production and quality control (vaccines, medicines, sera, antisera and/ or reagents). Its trinocular head allows the adaptation of digital devices (not included) for imaging and video documentation..

Eyepiece: PL 10X/22mm
Nosepiece: Quintuple
Objectives: 4X, 10X, 20XPH, 40X (S)
Optical System: Infinity-corrected plan achromatic

Stange: Fixed, 250 x 215 mm / 9.8" x 8.4" With removable mechanical stageand extensión to extend it

Condenser: A.N 0.3 long working distance.
Diaphragm: Iris type
Focus: Coarse and fine anti-slip control knob (precision 0.001 mm)
Ilumination: LED 5W It turns of it is out of use for 30 minutes
Dimensions: 250 x 508 x 565 mm / 9.8" x 20" x 22.2"
Power supply: 110/240V, 50/60 Hz, AC Adapter.


  • Diopter adjustment on both eyepieces.
  • Interpupillary distance of 50 - 75 mm.
  • Objectives with colored rings.
  • Lighting with intensity adjustment and power button.
  • Sensor for auto-off, for saving energy.
  • Heads inclined at 45 ° with 360° rotable eyepiece tube.
  • Stative, robust and reinforced.
  • Optical correction PL, for the best viewing.
  • Gemel type trinocular head, with phototube for c-mount adapter, compatible with VELAB LX series cameras and VE-SCOPEPAD300 tablet

  • Education: Upper grade levels
  • Research
  • Clinical

  • Power cord.
  • cover dust
  • Allen wrench
  • Centering telescope eyepiece.
  • Blade 4X/10X/20X/40X for phase contrast.
  • Mechanical stage.
  • Support for 35mm petri dishes.
  • Metallic central stage.
  • Stage extension.
  • Inmersion oil


10-years limited warranty
