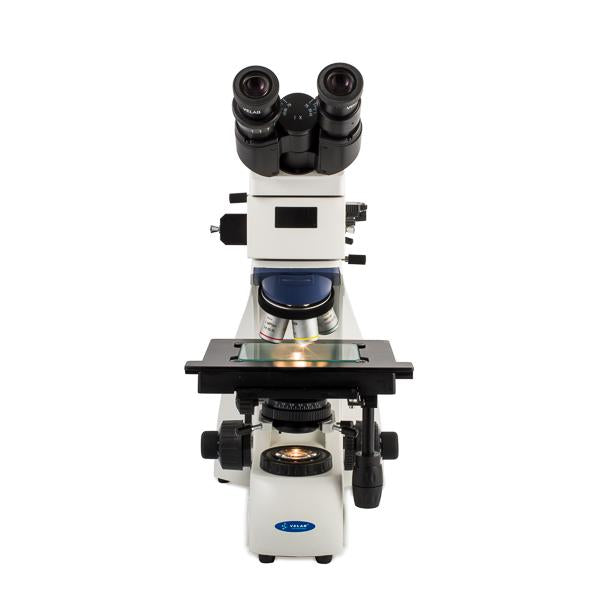

VE-146 Binocular Metallurgical Microscope

The VE-146 metallographic microscope is ideal for materials science, it includes transmitted and incident light with polarization.

Ideal for observing metals, crystals, powders and translucent materials.

EYEPIECES: WF 10x/22mm
NOSEPIECE: Quintuple
OBJECTIVES: 5X, 10X, 20X, 50X, long woring distance, Metallographic use
OPTICAL SYSTEM: Infinity-corrected plan achromatic
STAGE: Double layer with coaxial movement X-Y, 190 x 150 mm / 7.4" x 5.9"
CONDENSER: Abbe, A.N. 1.25 with elevator
DIAPHRAGM: Iris type
FOCUS: Coarse and fine anti-slip control knob
ILUMINATION: Kohler halogen 12V/30W y Epi-kohler fluorescence 12V/30W
POWER SUPPLY: 110/240V, 50/60 Hz AC adapter.
DIMENSIONS: 220 x 488 x 560 mm / 8.6″ x 19.2″ x 22″


  • Diopter adjustment in one eyepiece.
  • Binocular head type Siedentopf.
  • Objectives with color rings.
  • Stage with integrated clear glass surface.
  • Stable, robust, reinforced and easy to transport.
  • Incident and transmitted illumination, with diaphragm field in both.
  • Head tilted 30 ° and rotatable 360 °
  • Interpupillary distance of 48 ~ 75 mm.

  • Education: Lower grade level
  • Metallography, mineralogy and science materials
  • Industrial

  • Power cord.
  • Dust cover.
  • Filter lBD-2, IF550 and ND25
  • Blue, green and yellow filters.
  • Stage micrometer.
  • Micrometer eyepiece, DIV:0.1 mm.

10-years limited warranty
