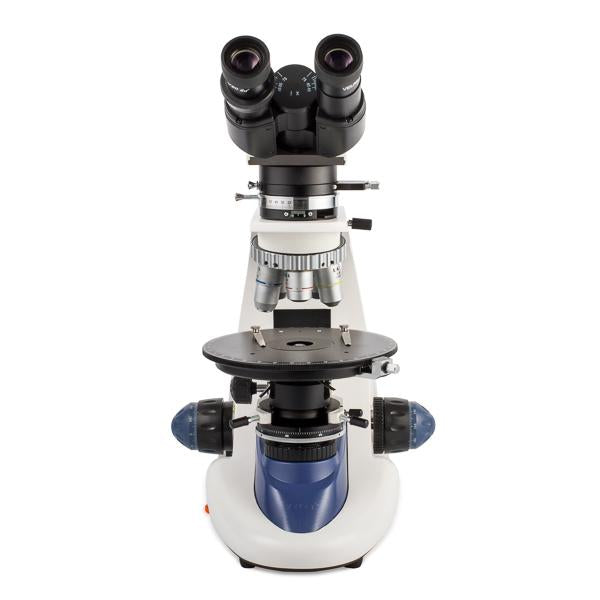

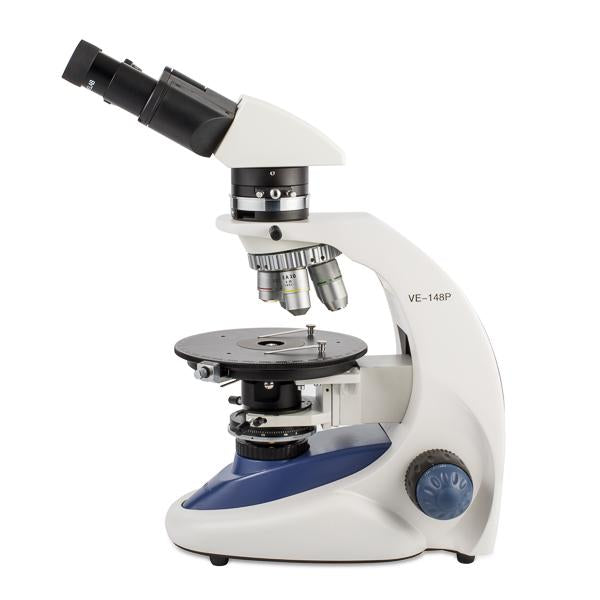

VE-148P Binocular Polarization Microscope
VE-148P Binocular Polarization Microscope
VE-148P Binocular Polarization Microscope
VE-148P Binocular Polarization Microscope
VE-148P Binocular Polarization Microscope
VE-148P Binocular Polarization Microscope
VE-148P Binocular Polarization Microscope
VE-148P Binocular Polarization Microscope
VE-148P Binocular Polarization Microscope
VE-148P Binocular Polarization Microscope
VE-148P Binocular Polarization Microscope
VE-148P Binocular Polarization Microscope

VE-148P Binocular Polarization Microscope

The VE-148P is a professional polarized light microscope, ideal forobserving crystalline or fibrous materials and the identification or study of mineral textures. The VE-148P offers observations with 3types of polarized light (conoscopic, simple and orthogonal) and hasa rotating circular stage, divided by a 360° scale.

EYEPIECES: EYEPIECES: WF 10x/20mm
NOSEPIECE: NOSEPIECE: Quintuple
OBJECTIVES: OBJECTIVES: 4X, 10X, 25X, 40X and 63X (S)
STAND: OPTICAL SYSTEM: Achromatic

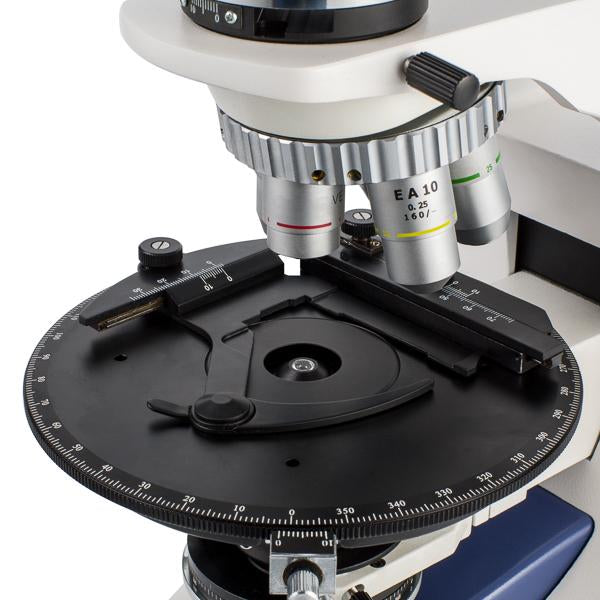

STAGE: STAGE: Circular mechanics with 170 mm / 6.69” diameter with 360° divided scale
CONDENSER: CONDENSER: Abbe, A.N. 1.3 oscillation with and polarizer
DIAPHRAGM: DIAPHRAGM: Iris type
FOCUSING: FOCUS: Coarse and fine anti-slip control knob
ILLUMINATION: ILUMINATION: Kohler halogen 12V/30W
POWER SUPPLY: POWER SUPPLY: 110/240V, 50/60 Hz AC adapter.
DIMENSIONS: DIMENSIONS: 180 x 465 x 295 mm / 7.0" x 18.3" x 11.6"



  • Diopter adjustment in an eyepiece.
  • Siedentopf type Binocular Head.
  • Head inclined at 30 ° and rotatable 360°.
  • Stative, robust, reinforced and easy to transport.
  • Illumination with intensity control and field diaphragm in the lamp.
  • Stage with goniometer and double adjustment option.
  • Head with analyzer and Bertrand lens system.
  • Objectives with colored rings.
  • Interpupillary distance of 48 ~ 75 mm.
  • Mechanical removable stage, movement X-Y.

  • Education: Lower grade level.
  • Industrial
  • Metallography, mineralogy and science materials

  • Power
  • cord
  • 10X / 20 mm squared eyepiece, DIV: 0.1 mm
  • 10X / 20X cross division eyepiece
  • Micrometric eyepiece 10X20 mm, DIV: 0.1 mm
  • Stage micrometer, DIV: 0.1 mm
  • Gypsum lambda compensating filters, mica, quartz wedge and filter covers dust.
  • Allen wrenches
  • Blue filter

10-years limited warranty
