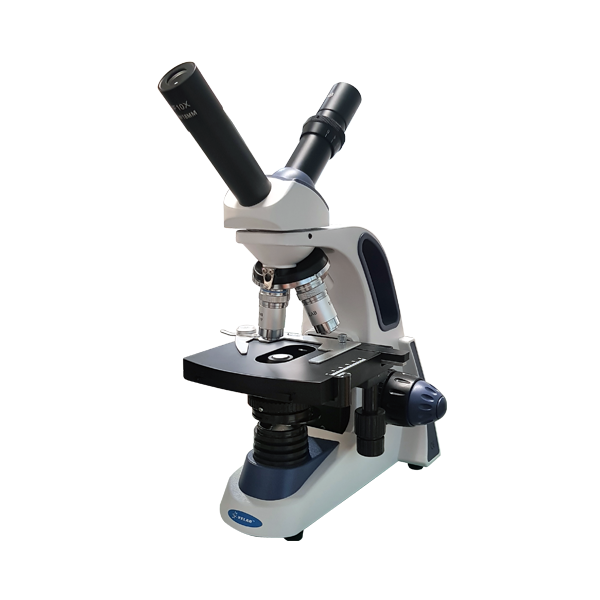

VE-M5DTH Dual View Compound Microscope

The VE-M5DTH dual view compound microscope is ideal for 2 simultaneous observations. Its area of application is not limited to mid and upper level education environments, the VE-M5DTH can also be applied to meet the basic needs in clinical laboratories. It features LED illumination and a quadruple nosepiece (with immersion objective).


EYEPIECES: WF 10x/18 mm with block screw.
HEAD: Double Monocular head, 45° inclined head, 360° rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95”
NOSEPIECE: Quadruple nosepiece with click-stops.

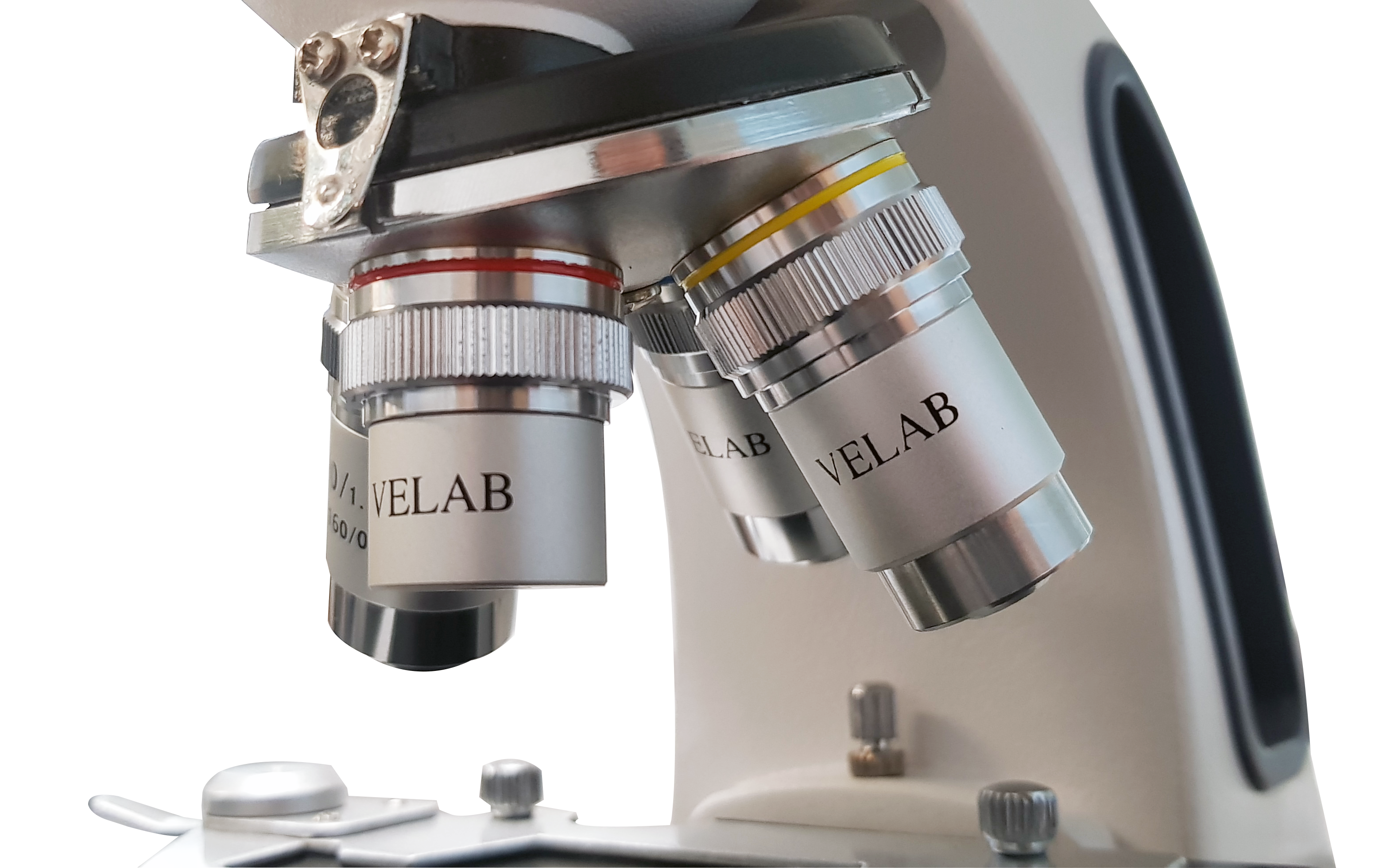

OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish
STAGE: Two-layer stage, with X-Y coaxial movement, 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, A.N. 1.25 with height adjustment screw.
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: LED with intensity control.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.



  • AC/DC Adapter.
  • Adapter cable reel device.
  • Blue filter.
  • Dust cover.
  • Immersion oil.
