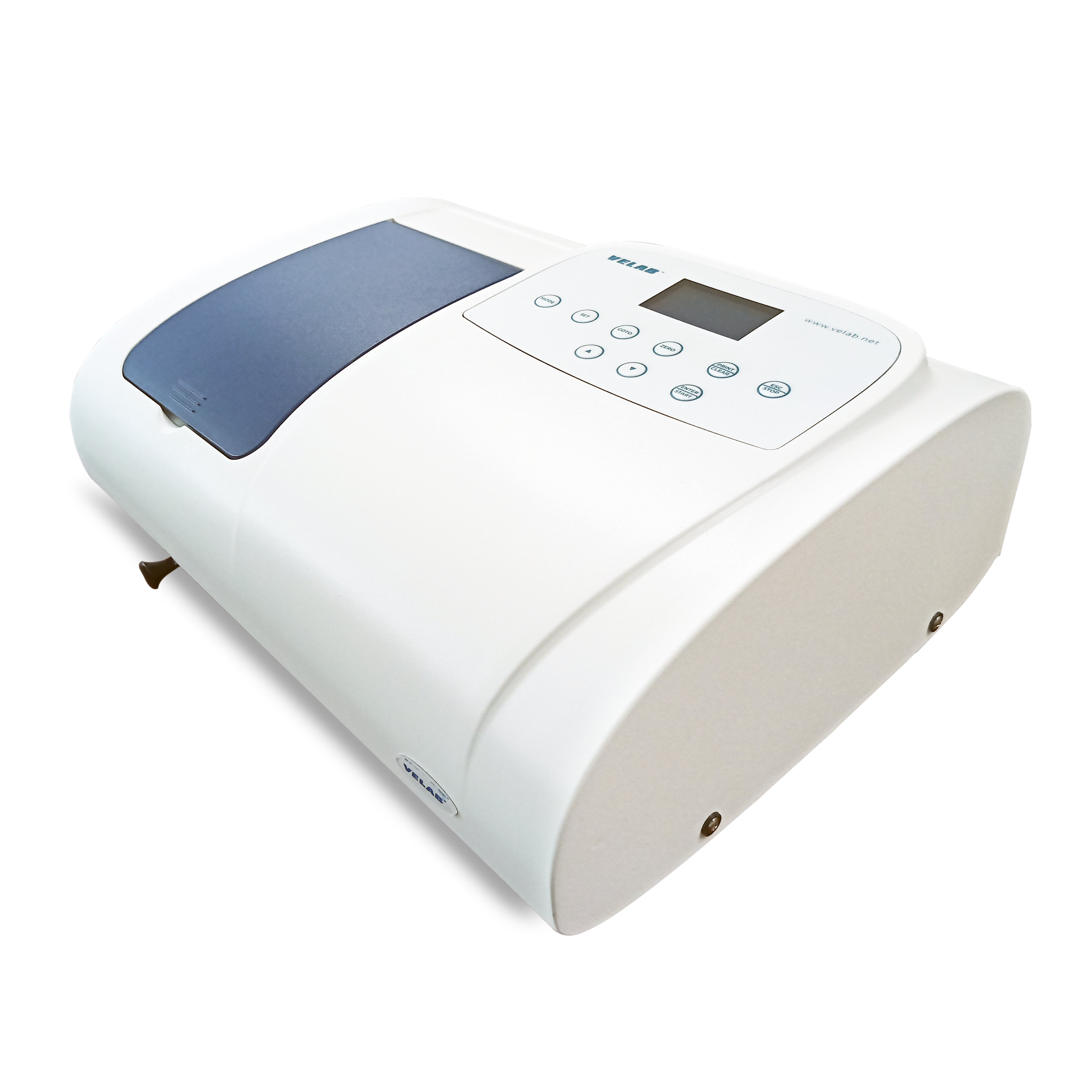

VE-5100UV UV-VIS Spectrophotometer

The Visible and UV Visible Light Spectrophotometer, VELAB (VE- 5100UV) is easy to operate, covers a wide wavelength range. It is accurate, reliable, safe for the user, stable in its readings. Its LCD screen is easily visible from any angle.

Ficha técnica

Wavelength range:190 -1000 nm.

Bandwidth: 2 nm.

Wavelength accuracy: ± 1 nm.

Wavelength repeatability: ≤0.5 nm.

Calibration: Automatic.
Optical system: 1200 lines per mm grid.

Photometric precision: ± 0.5% T.

Stability: ± 0.002 A /h a 500nm

Diffused light: ≤ 0.3% T, 220 nm, 360 nm.

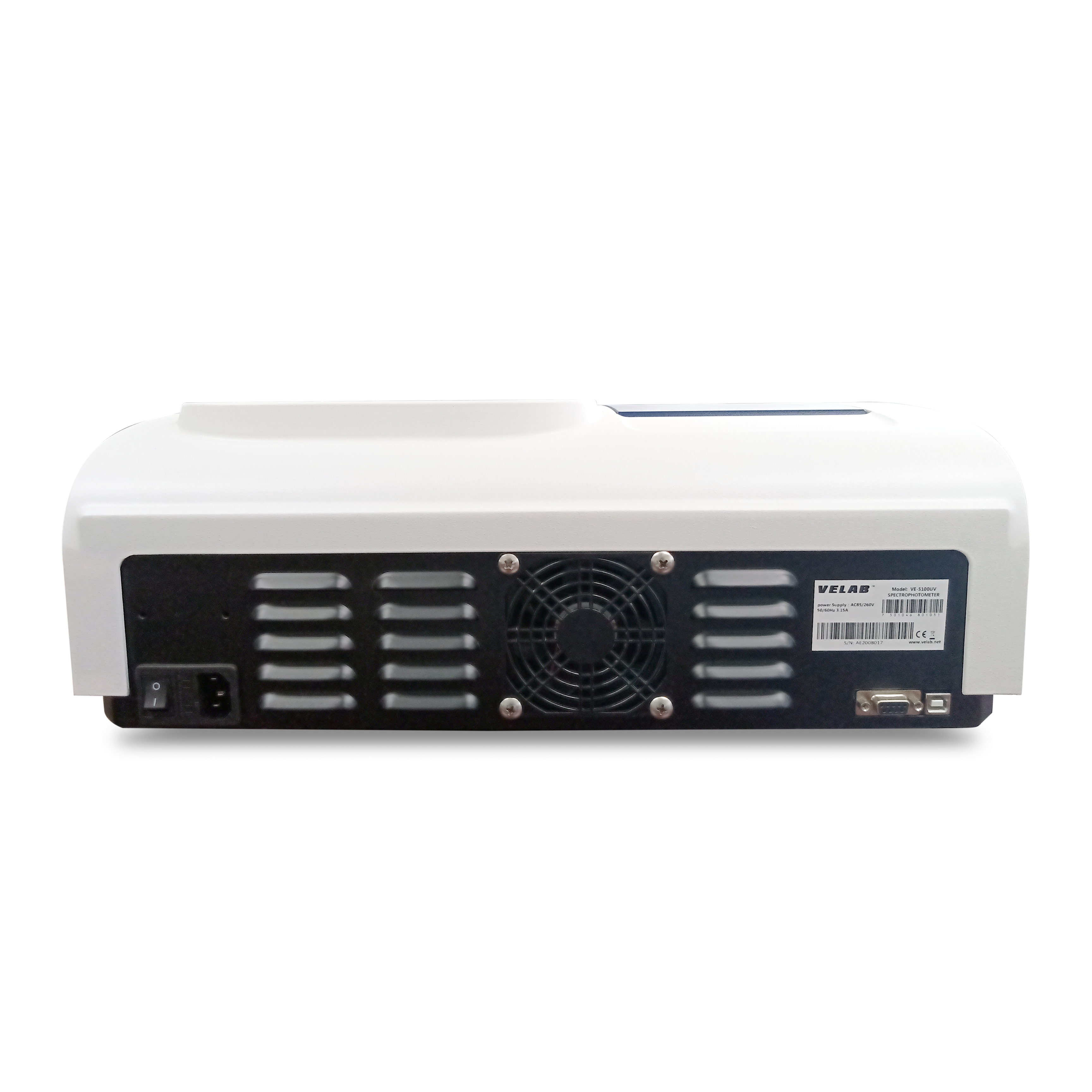

Data interface: USB port, and RS-232 port for printer


Light source: Deuterium and Tungsten

Detector: Silicon photodiode.

Power Supply:85-260 V, 50/60 Hz 3.15 A, AC adapter

Dimensions: 450 x 340 x 165 mm / 17.7" x 13.3" x 6.4"


  • It is an instrument of high precision, stability and repeatability.
  • It also has an additional option for connection to operation software and data download (not included).
  • Storage capacity for 200 data.

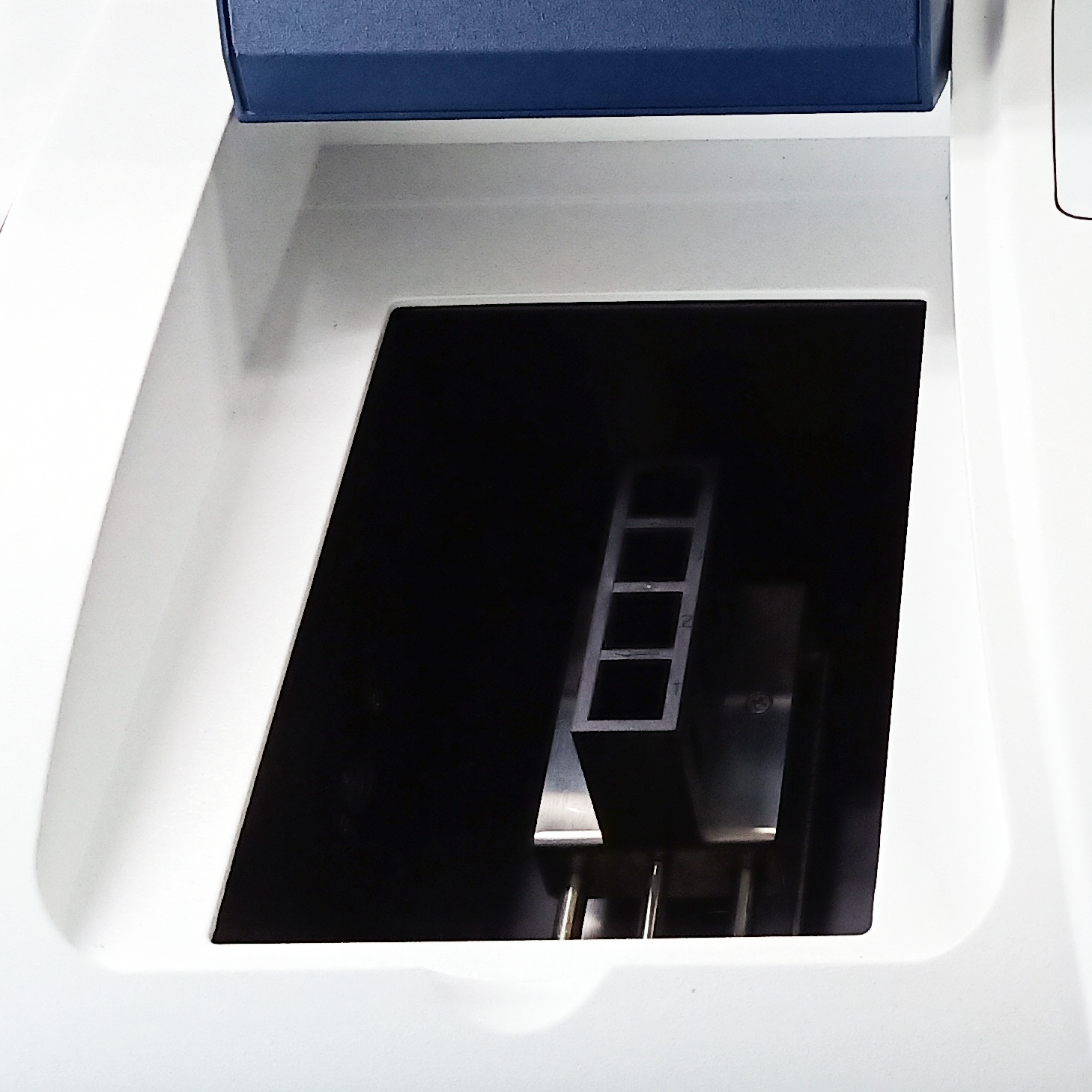

  • 10 mm 4-hole cell holder slider.
  • Auto setting wavelength.

  • Quantitative analysis mode of operation
  • Performs concentration curves and calculations
  • Kinetic analysis

  • Power cord.
  • Glass cell (4)

1-year limited warranty
