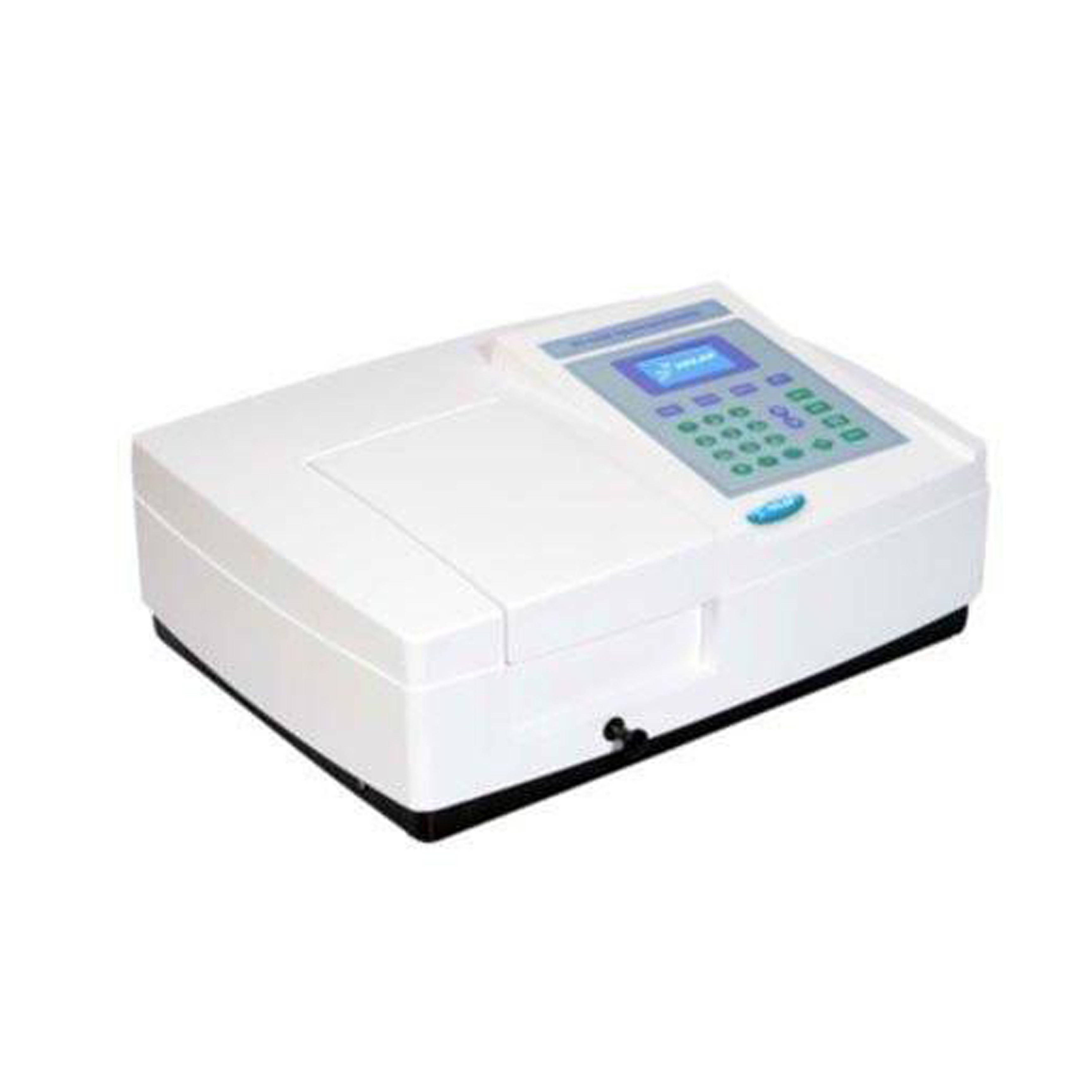

VE-8000A UV- VIS Light Spectrophotometer w/ Double Littrow Beam

The most advanced spectrophotometer of VELAB series. Equipped with double beam Littrow type, designed to meet the needs of laboratories which use spectrophotometry as a routine method for the analysis and quantification of reacting substances, nutrients, pollutants, metabolites, and to develop standard curves and kinetics of enzyme activity in the areas of analytical chemistry, biochemistry, pharmaceutics, petrochemistry, environmental protection, food and beverages laboratories, and in other fields of analytical quality control and advance research.

Wavelength range: 190 – 1100 nm.

Bandwidth: 1 nm.

Optical System: Double beam Littrow 1200 lines/mm grating

Calibration: Automatic

Wavelength accuracy: ± 0.3 nm.

Wavelength repeatability: ±0.2 nm.

Wavelength response: ± 0.002 A.

Photometric range: 0-200% T, -0.3-3.0A.

Diffused light: 0.05 % T to 220nm y 360 nm.

Fearures: Absorbance, transmittance, concentration, factor.

Screen: LCD.

Data output port: USB

Light source: Tungsten-halogen and Deuterium.

Printer output: Parallel port.

Stability: 0.002A/h a 500nm.

Detector: Silicon photodiode.

Power Supply:AC 110-220V, 50/60 Hz, 3.15 A.

Dimensions: 625 x 430 x 206 mm/ 24.6” x 16.9” x 9.0”.

  • It is an analytical instrument with high precision and photometric stability.
  • Optical system with double beam, for the simultaneous reading of the sample and the blank.
  • Idea for applications such as chemical, biochemical, petrochemical, environmental protection.
  • Storage of all your data on computer equipment.



  • Measurement of absorbance.
  • Quantitative analysis: Creation of concentration and factor curves.
  • Wavelength scan
  • Photometric analysis
  • System self-diagnosis
  • Measurement with multiple wavelengths
  • Measurement of transmittance
  • Kinetic analysis

  • Three-phase cable
  • Two 10mm quartz cells
  • Two 10 mm glass cells
  • Plastic sleeve
  • Software kit (USB cable, disk, adapter for software)



1-year limited warranty
