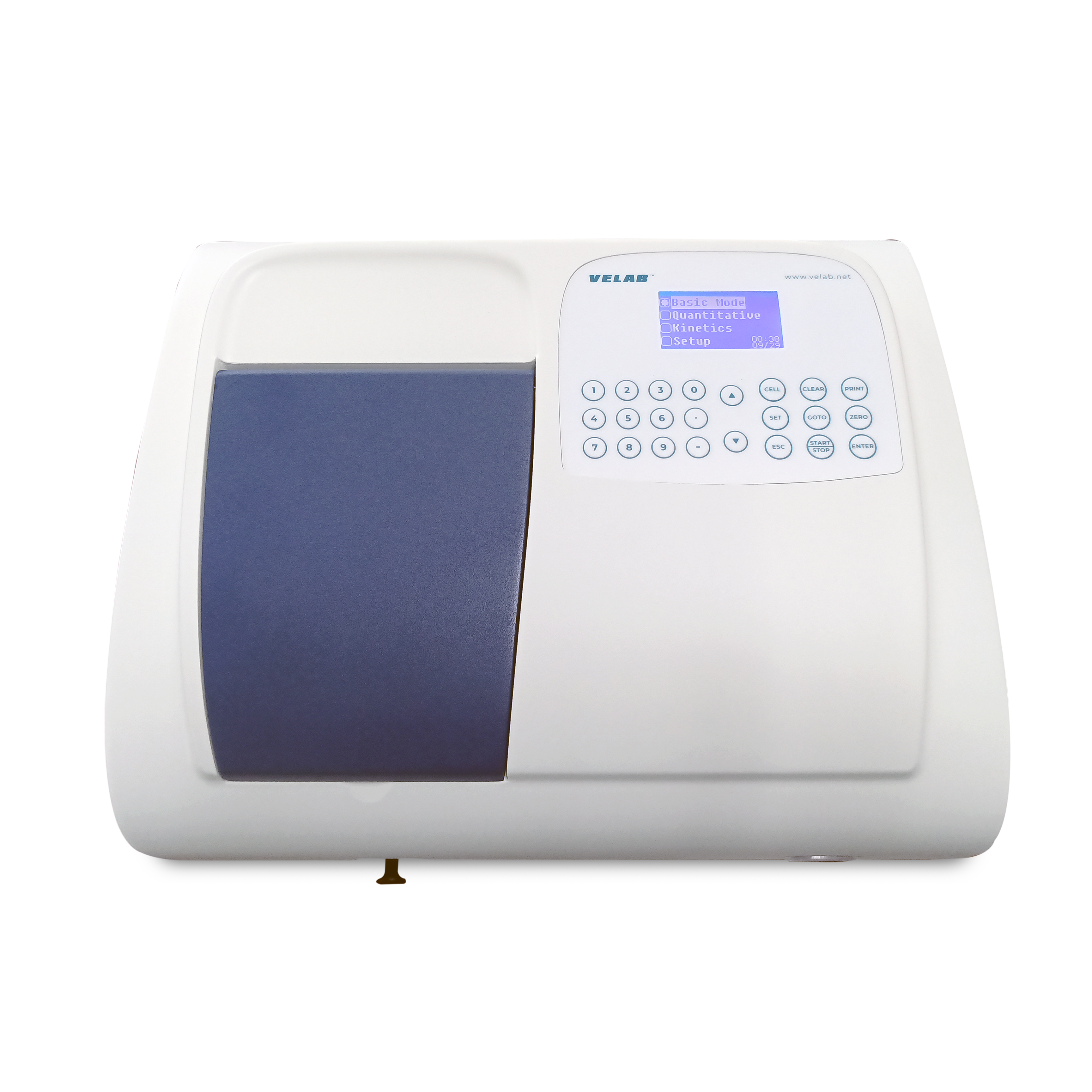

VE-5600UV UV-VIS Spectrophotometer

It is equipped with a Windows platform program that allows you to collect and analyze data in Excel model. Its LED display is easy to read from any angle to reduce visual fatigue after several hours of work. In addition, Halogen-Tungsten and Deuterium lamps can be switched on and off independently to extend their life. It has a large sample compartment and accepts several adapters for different tubes and cells.

FICHA TÉCNICA



WAVELENGTH RANGE

 190 - 1100 nm.

BANDWIDTH

 2 nm.

WAVELENGTH ACCURACY

 ± 0.8 nm.

WAVELENGTH REPEATABILITY

 0.3 nm.

CALIBRATION Automatic
OPTICAL SYSTEM Simple, 1200 lines per mm grid

PHOTOMETRIC PRECISION

 ± 0.3% T.

PHOTOMETRIC REPEATABILITY

 ± 0.2% T.

STABILITY

 0.002 A / h at 500nm.

DIFFUSE LIGHT

 ≤ 0.05% T at 220nm and 360 nm.

DATA INTERFACES

USB A/B port, RS-232 port for printer

SCREEN

LCD

LIGHT SOURCE

 Halogen / Tungsten (Visible) and Deuterium (Ultraviolet) Lamp

DETECTOR

 Silicon photodiode.

POWER SUPPLY

110/220v, 50/60Hz, 3.15a, AC Adapter

DIMENSIONS

 460 x 380 x 180 mm/18.1" x 14.9 x 9.0"



  • It is an analytical instrument with high precision and photometric stability
  • Additional option for connection to operation software and data download (not inlcuded)
  • Alphanumeroc board for easy programming

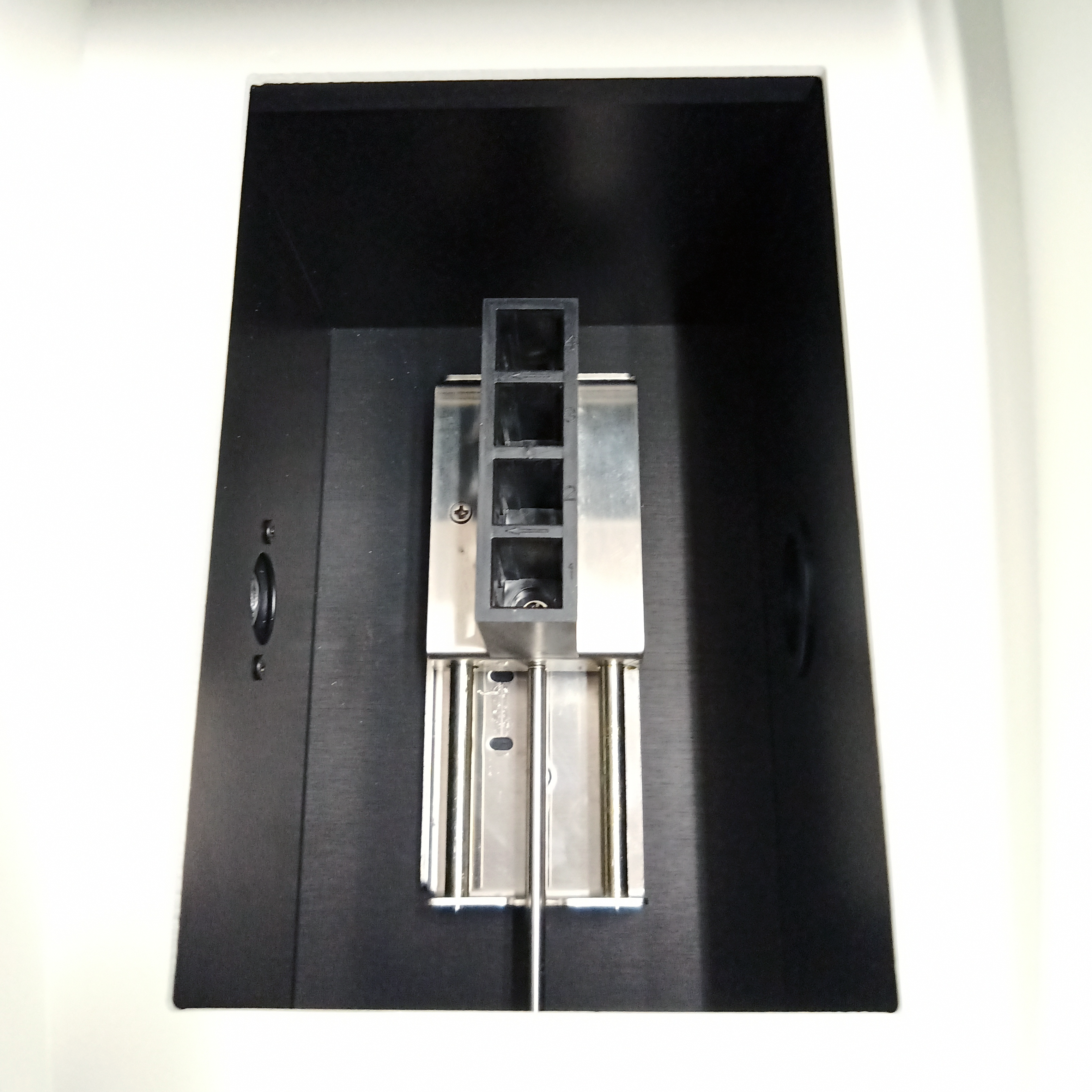

  • 10mm 4 hole cell holder slider
  • it has a menu of settings and self-evaluation

  • Dust cover
  • Glass cell (4)

  • Measurement of absorbance
  • Quantitative analysis using concentration curves
  • Transmittance measurement
  • Dynamic measurements over a defined period

1-year limited warranty
