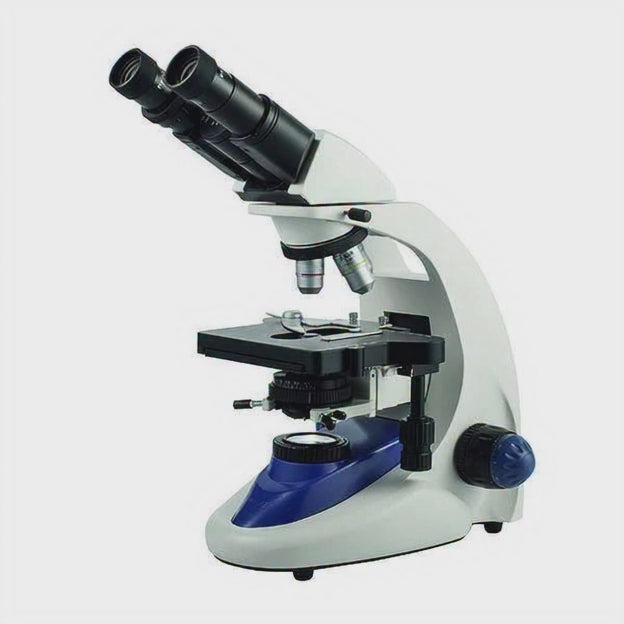

VE-B4 Binocular Microscope

The VE-B4 is a professional microscope, ideal for research, higher education and routine work in clinical laboratories Its semi-plan objectives offer correction of optical aberrations for the observation of higher quality images. The Kohler LED lighting makes it a very complete and versatile device. The VE-B4 is adaptable to the needs of the user, it can be configured optionally to be compatible with a phase contrast kit and polarization set.

EYEPIECES: WF 10X/20 mm
NOSEPIECE: Quadruple
OBJECTIVES: 4X, 10X, 40X (S), 100X (S) (oil)
OPTICAL SYSTEM: Semi-plan achromatic
STAGE: Double layer with coaxial movement X-Y 150 x 132 mm / 5.9" x 5.1"
CONDENSER: Abbe, N.A. 1.25 with elevator
DIAPHRAGM: Iris type
FOCUS: Coarse and fine anti-slip control knob
DIMENSIONS: 180 x 395 x 290 mm / 7.08" x 15.55" x 11.41"
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) 110/240V, 50/60 Hz AC adapter.


  • Diopter adjustment in an eyepiece.
  • Siedentopf type Binocular Head.
  • Head inclined at 30 ° and rotatable 360 °
  • Interpupillary distance of 48 ~ 75 mm.
  • Objectives with colored rings.
  • Stative, robust, reinforced and easy to transport.
  • Lighting with intensity adjustment and field diaphragm in lamp for Kohler illumination.
  • Stage with vernier, millimeter scale, caliper and stop with height adjustment.
  • Condenser for phase contrast kit (not included).

  • Education: Upper grade levels
  • Research
  • Clinical

  • Color filters Blue, green and yellow
  • Dust cover.
  • Immersion oil.
  • Power cord.

10 years limited warranty
