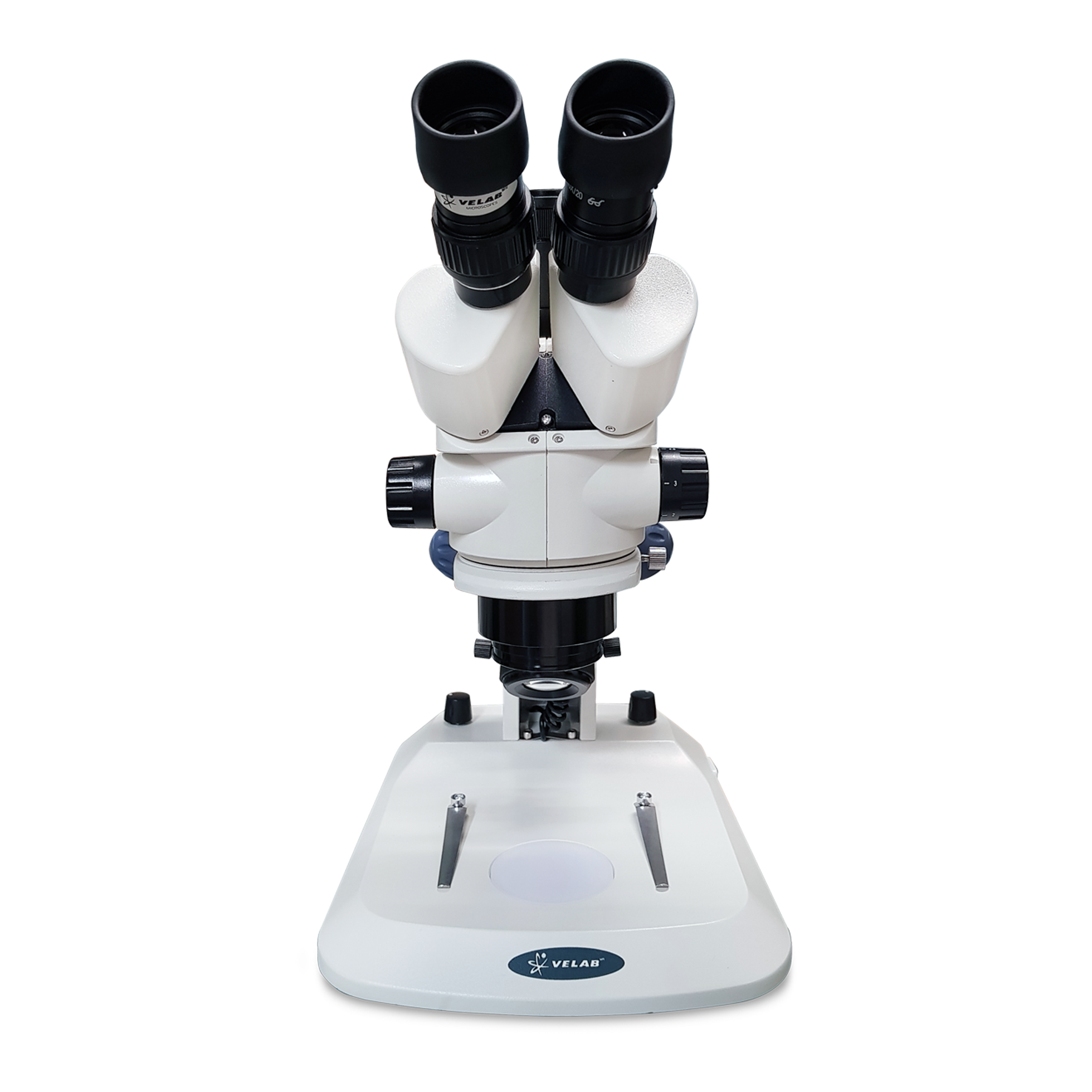

VE-S5 Stereoscopic Trinocular Microscope with Zoom System

Ideal for professional use and higher education, the VE-S5 is an excellent tool in medical industrial research. A versatile device, useful in production procedures or quality inspection of industrial products, thanks to its zoom system.

Its Greenough design allows three-dimensional observation of insects. The VE-S5 is ideal in the dissection and classification of organisms in entomology and taxonomy, as well as the observation and selection of viable embryos in livestock.

Eyepieces: WF 10X/20 mm
Objectives:Variable magnification Zoom System 0.7X, 0.8X, 1X, 1.5X, 2X, 3X, 4X and 4.5X (from 7 to 45 total increases)
Stage: Interchangeable 60 mm/2.3" diameter stage,opaque glass and double-sided white / black
Focus: Coarse anti-slip control knob
Ilumination: Transmitted and incident LED
Power supply: 110/240V, 50/60 Hz AC adapter.
Dimensions: 225 x 340 x 270 mm / 8.8" x 13.3" x 10.6"


  • Trinocular head, inclined at 45 °.
  • Stage with clamps.
  • Phototube with 23 mm diameter, compatible with VELAB MC, LX series cameras and VE-SCOPEPAD tablet.
  • Two interchangeable plates: opaque glass, for transmitted light and double-sided white / black, for incident light.
  • Interpupillary distance of 55 ~ 75mm.
  • Stable, robust, reinforced and easy to transport.
  • Lighting with independent switches.
  • Diopter adjustment in both eyepieces.
  • Anti-slip ring on lens and cap.

  • Education
  • Industrial
  • Research

  • Dust cover.
  • Operation manual.
  • Power cord.

10-years limited warranty.
