VE-S7 Binocular Stereoscope
VE-S7 Binocular Stereoscope
VE-S7 Binocular Stereoscope
VE-S7 Binocular Stereoscope
VE-S7 Binocular Stereoscope
VE-S7 Binocular Stereoscope
VE-S7 Binocular Stereoscope
VE-S7 Binocular Stereoscope

VE-S7 Binocular Stereoscope

Add to wishlist Added to wishlist
CODE:

100% ORIGINAL AND QUALITY

12 MONTHS GUARANTEE

  • Description
  • TECHNICAL DATA

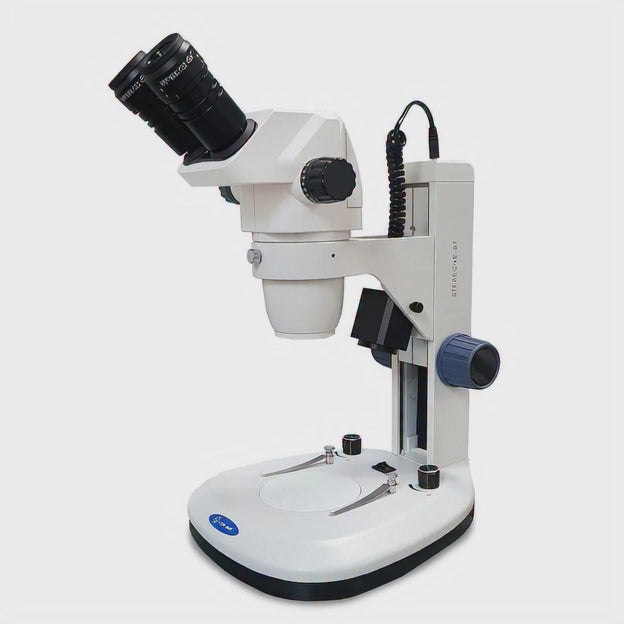

The VE-S7 is the ideal for professional use in higher education, research and industrial procedures. A versatile device, useful in production procedures or quality inspection of industrial products, thanks to its 6.5 X- 55X zoom system.

Its Greenough design allows three-dimensional observation of insects and possesses a wide field of observation provided by its eyepieces. The VE- S7 is the perfect device for the dissection and classification of organisms in entomology and taxonomy, as well as livestock for the observation and selection of viable embryos.

TECHNICAL DATA VE-S7

Eyepieces: WF 10X/23 mm

Objective: Variable magnification zoom System 0.65X, 1X, 1.5X, 2X, 2.5X, 3X, 3.5X, 4X, 4.5X, 5X, 5.5X (from 6.5 to 55 total increases) and objective cover.

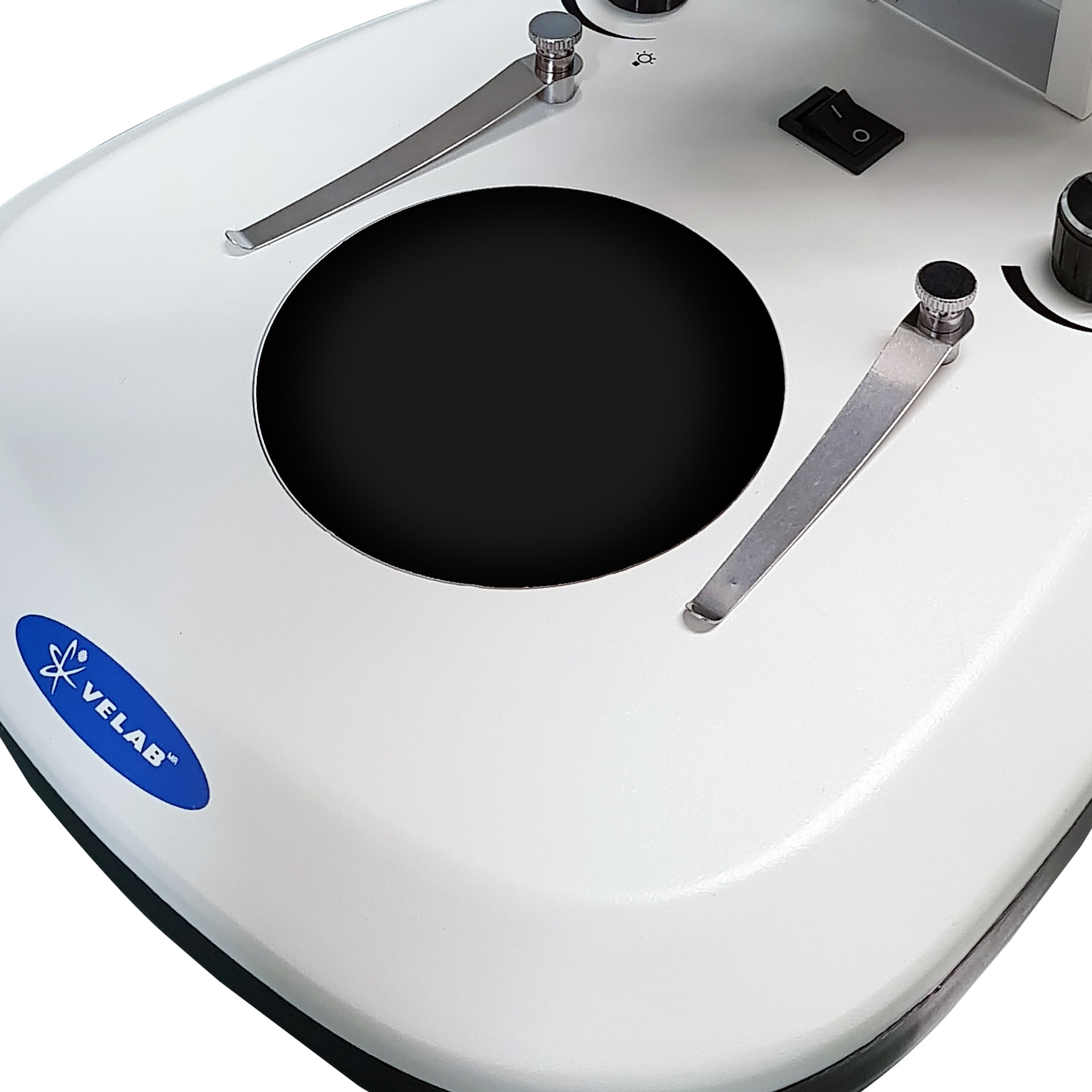

Stage: Interchangeable 95 mm / 3.7 “ diameter stage, opaque glass and double-sided white / black.

Focus: Coarse anti-slip control knob

Illumination: Transmitted and incident LED

Dimensions: 245 x 435 x 312 mm/ 9.6” x 17.1” x 12.2”.

Power Supply: 110-240V, 50/60 Hz AC adapter.



Main features

  • Binocular head, inclined at 45 °.
  • Interpupillary distance of 55 ~ 75mm
  • Two interchangeable plates: opaque glass, for transmitted light and double-sided white / black,
  • for incident light.
  • Diopter adjustment in both eyepieces.
  • Anti-slip ring on lens and cap.
  • Stage with clamps.
  • Lighting with independent switches.
  • Stable, robust, reinforced and easy to transport.

Application

  • Education
  • Industrial
  • Research

Accessories included:

  • Dust cover.
  • Power cord
