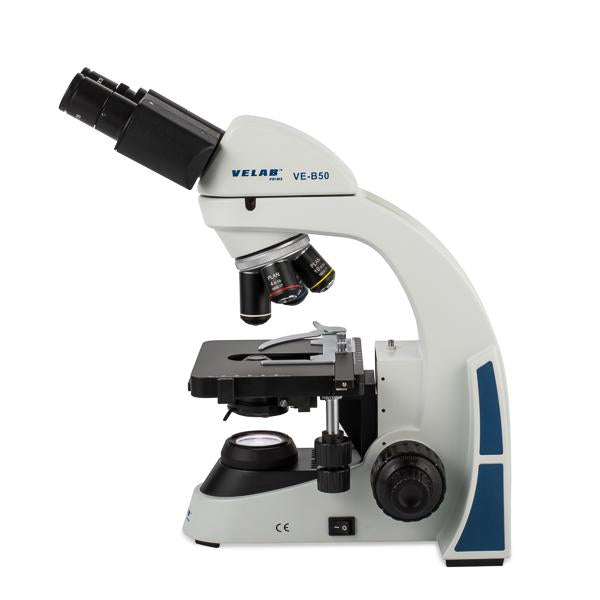

VE-B50 Binocular Microscope

The VE-B50 is a biological microscope designed for the development of advanced microscopy techniques. Applicable in research, higher education and clinical laboratories for diagnostic purposes and ideal for the detection of pathologies.

Its stage allows the fine and smooth displacement of the sample, the importance of the sample in the histology and cytology tests. It has excellent optical quality components and long-life LED illumination. The VE-B50 offers diopter adjustment in one of its parameters to compensate for the difference in focus that is natural in the user’s eyes.



EYEPIECES
PL 10x/18 mm with rubber eyecups and ± 5 mm diopter adjustment in one eyepiece.
HEAD Binocular Siedentopf type, 30° inclined with interpupillary distance adjustment between 50 - 75 mm/1.96” - 2.95”.
NOSEPIECE Quadruple nosepiece with anti-slip grip and click-stops, mounted on high-tension ball bearings.
OBJECTIVES 4X, 10X, 40X (S) and 100X (S) oil immersion with plan achromatic optics and color ring for easy identification.
STAND Stative, robust and reinforced with epoxy paint finish.
STAGE Double plate with X-Y coaxial movement, 5.51” x 5.519”, vernier, millimeter scale ( 3.46” x 2.36”), clamp and height adjustment with stop.
CONDENSER Abbe, N.A. 1.25 with height adjustment screw.
DIAPHRAGM Iris with filter holder.
FOCUSING Coarse and fine anti-slip control knob with 0.002 mm precision and tension adjustment.
ILLUMINATION 3W LED with intensity control.
POWER SUPPLY 110-240V, 50/60 Hz AC adapter.



  • Dust cover.
  • Immersion oil.
  • Power cord.
