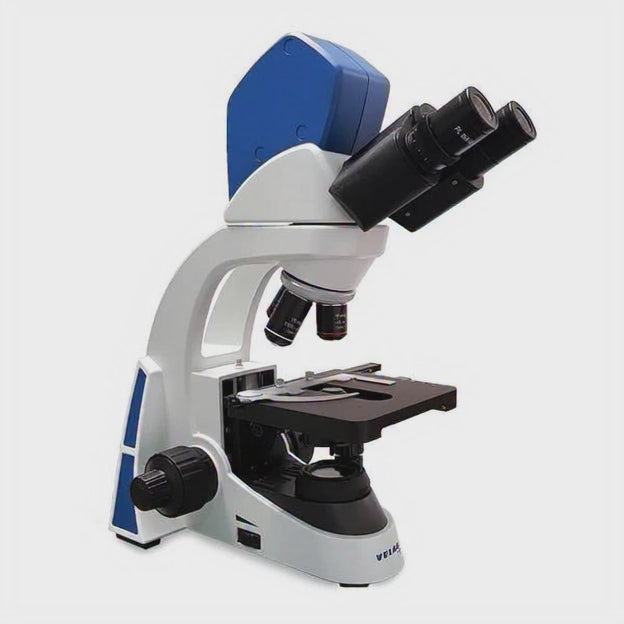

VE-D50 Digital Microscope

Digital microscope ideal for all kinds of advanced techniques. It has all the properties of a professional biological microscope, as well as being equipped with a 3.0 MPX digital camera. Used for research, higher education and diagnostic purposes in clinical laboratories.

Its stage provides fine and smooth movement control, providing precise orientation, a useful feature during histology and cytology tests. It has optical components of excellent quality and long useful life LED lighting. The diopter adjustment offers diopter adjustment

EYEPIECES: PL 10X/18 mm
NOSEPIECE: Quadruple
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil)
OPTICAL SYSTEM: Plan Achromatic
STAGE: Double layer with coaxial movement X-Y, 140 x 132 mm / 5.5” x 5.1”.
CONDENSER: Abbe, N.A. 1.25
DIAPHRAGM: Iris type with filter holder.
FOCUS: Coarse and fine anti-slip control knob (precision 0.002 mm).
ILUMINATION: LED 3W
DIMENSIONS: 220 x 418 x 320 mm / 8.6" x 16.4" x 12.5"
POWER SUPPLY: 110/240V, 50/60 Hz, AC Adapter



  • Interpupillary distance of 50 - 75 mm.
  • Diopter adjustment ±5 in one eyepieces.
  • Heads inclined at 30 °.
  • Stative, robust and reinforced. Easy to transport.
  • Plates with vernier, millimeter scale and calipers.
  • Objectives with colored rings.
  • Lighting with intensity adjustment.
  • Siendentopf type binocular heads and 3.0 MP integrated camera.
  • It includes software for operating and advanced digital analysis.

  • Education: Upper grade levels
  • Research
  • Clinical

  • Dust cover
  • Immersion oil
  • Power cord
  • VE-T50 includes c-mount adapter

10-years limited warranty
