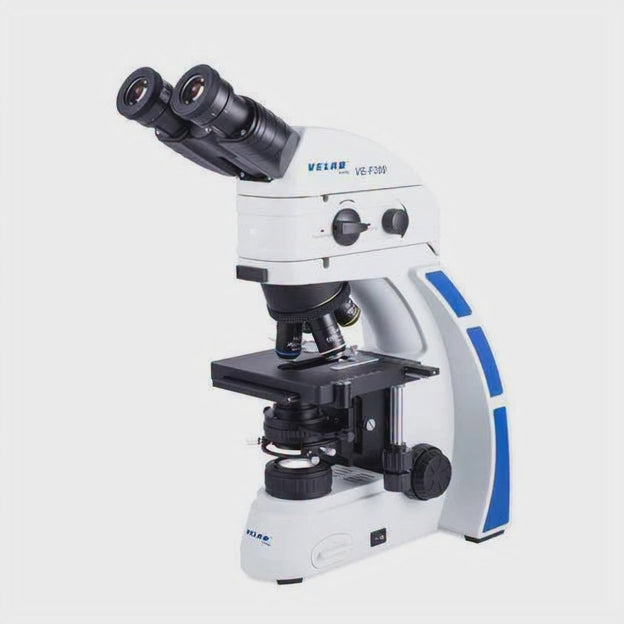

VE-F300 Fluorescence Microscope

The VE-F300 LED fluorescence microscope was designed for professional use, thanks to its excellent quality optical components and highly efficient LED illumination. It includes Epi-LED fluorescence illumination for immediate use, extremely safe, and no need for a fluorescent light protective screen. Ideal in biochemistry, neurology, biology, research, as well as for the diagnosis of diseases.

Eyepieces: PL 10X/20 mm
Nosepiece: Quadruple
Objectives: 10X, 20X, 40X (S), 100X (S) (oil)
Optical system: Infinity-corrected plan achromatic
Stage: Double layer with coaxial movement X-Y, 150 x 140 mm / 5.9" x 5.5"
Condenser: Abbe, N.A. 1.25 with elevator
Diaphragm: Iris type
Focus: Coarse and fine anti-slip control knob (precision 0.001 mm)
Ilumination: Kohler LED 3W and Epi-Fluorescence LED to 470 nm (optional: 365, 455, 560) 6V/3W
Power supply: 110/240V, 50/60 Hz, AC Adapter.
Dimensions: 185 x 457 x 290 mm / 7.2" x 17.8" x 11.4"



  • Diopter adjustment on both eyepieces.
  • Gemel type Binocular Head.
  • Stage with vernier, millimeter scale and calipers.
  • Objectives with colored rings.
  • Optional accessories for phase contrast, darkfield and polarisation (not incluided).
  • Optical correction PL, for the best viewing.
  • Interpupillary distance of 50 - 75 mm.
  • Head inclined at 30 ° with 360° rotable eyepiece tube.
  • Stative, robust and reinforced. Easy to transport.
  • Illumination with intensity and diaphragm adjustment.
  • Fluorescence ilumination by LED: 470 nm (preconfigured) UV: 365 nm, B2: 455 nm, G: 560 nm (opcional, non included).

  • Education: Upper grade levels
  • Clinical
  • Research

  • Dust cover.
  • Immersion oil.
  • Power cord.
  • AC/CD Adapter

    10-years limited warranty
