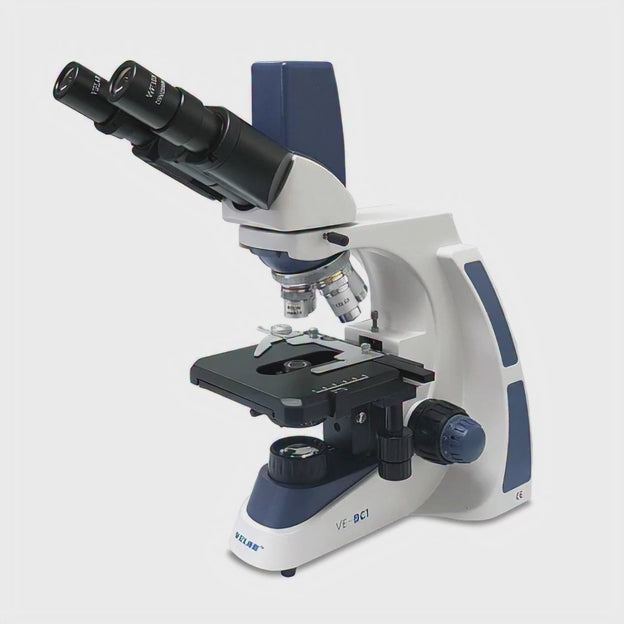

VE-BC1 Digital Microscope
VE-BC1 Digital Microscope
VE-BC1 Digital Microscope
VE-BC1 Digital Microscope
VE-BC1 Digital Microscope
VE-BC1 Digital Microscope
VE-BC1 Digital Microscope
VE-BC1 Digital Microscope

VE-BC1 Digital Microscope

Equipped with a 3.0MP digital camera, the VE-BC1 is the ideal device for teaching secondary and higher education courses, as well as for analysis, group observation and evidence documentation during diagnosis, basic and intermediate research.

It includes easy operation software compatible with Windows operating systems. It is practical for the observation of images in real time and for storing obtained captures on your computer.

Eyespieces: WF 10X/20 mm
Camera: 3.0 MP, integrated
Nosepiece: Quadruple
Objectives: 4X, 10X, 40X (S) 100X (S) (oil)
Optical System: Achromatic
Stage: Double layer with coaxial movement X-Y 135 x 135 mm / 5.3" x 5.3"
Condenser: Abbe, N.A. 1.25
Diaphragm: Iris type with filter holder.
Focus: Coarse and fine anti-slip control knob
Ilumination: LED
Operating system: Windows XP/ Vista/ 7/ 8/ 10 (32 & 64 bit)
Dimensions: 180 x 375 x 250mm / 7.0" x 14.7" x 9.8"
Power supply:AC 110240V, 50/60 Hz



  • Integrated digital camera
  • Siedentopf type binocular head
  • Head tilted 30° and rotable 360°
  • Interpupillary distance of 48 - 75 mm
  • Software for capture image, video and digital analysis
  • Stative robust, reinforced and easy to transport
  • Lighting with intensity adjustment
  • Objectives with color rings
  • Stage with vernier, milimeter scale,  caliper and stop with height adjustment

  • Education: Basic grade levels
  • Clinical
  • Research

  • Dust cover
  • Immersion oil
  • USB cable
  • Power cord
  • Software
  • Color filters green, yellow and blue
  • Eyepieces WF20x/15mm

1-years limited warranty
