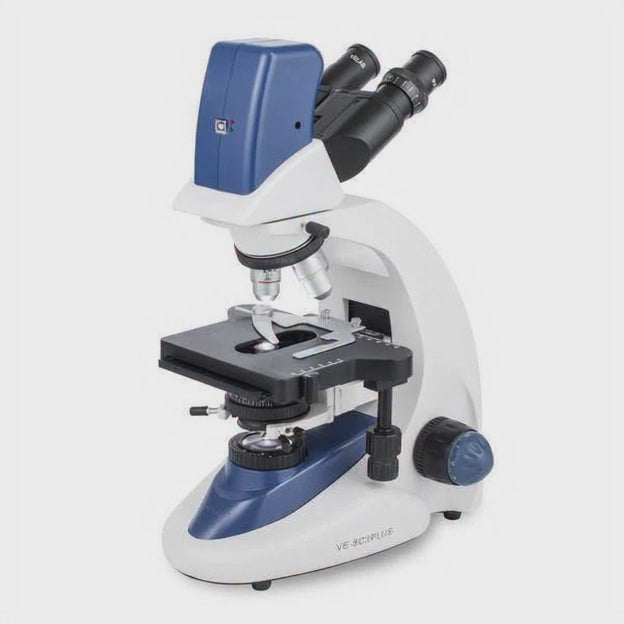

The VE-BC3 PLUS PLAN digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 5.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real-time and for storing captures on a computer.
Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device in higher education, research, and diagnosis.
|Eyepieces: WF 10x/22 mm|
|Camera: 5.0 MP, integrated|
|Objectives: 4X, 10X, 40X (S), 100X (oil) (S)|
|Optical System: Infinity-Corrected Plan achromatic|
|Stage: Double layer with coaxial movement X-Y 150 x 132mm/5.9" x 5.1"|
|Condenser: Abbe, A.N. 1.25 with elevator|
Diaphragm: Iris type with filter holder.
|Focus: Coarse and fine anti-slip control knob|
|Ilumination: Kohler LED|
|Operating system: Windows XP/ Vista/ 7/ 8/ 10 (32 & 64 bit)|
|Dimensions: 180 x 445 x 295 mm / 7.0" x 17.5" x 11.6"|
|Power supply: Three 1.2V AA rechargeable batteries (included) 110/240V, 50/60 Hz AC adapter.|
- Diopter adjustment in an eyepiece.
- Stative, robust, reinforced and easy to transport.
- Siedentopf type Binocular Head.
- Lighting with intensity adjustment and field diaphragm in lamp.
- Head inclined at 30 ° and rotatable 360°
- Interpupillary distance of 48 ~ 75 mm.
- Stage with vernier, millimeter scale, caliper and stop with height adjustment.
- Objectives with colored rings.
- Integrated digital camera.
- Education: Upper grade levels
- USB cable
- Immersion oil
- Dust cover
- Power cord
- Blue, green and yellow filter
- Stage micrometer
10-years limited warranty.
