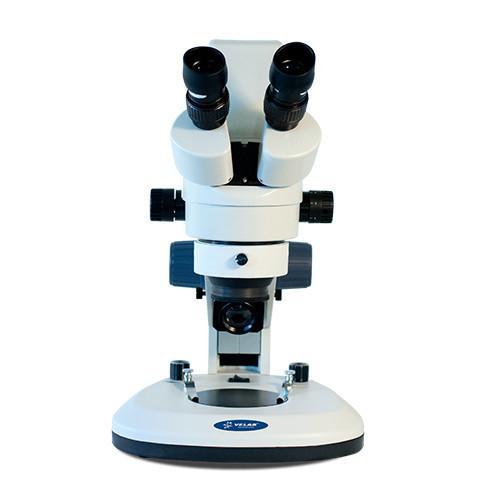

VE-S5C Stereoscopic Digital Microscope

The VE-S5C is the ideal for professional use in higher education, research and industrial procedures. It also comes equipped with a digital camera. A versatile device, useful in production procedures or quality inspection of industrial products, thanks to its zoom system.

Its Greenough design allows three-dimensional observation of insects and is ideal in the dissection and classification of organisms. The VE-S5 includes easy-to-use operational software compatible with Windows operating systems, perfect for the observation of images in real time and storage in a computer.



Eyepiece: WF 10X/20 mm
Camera: 1.3MP  integrated
objectives: 0.7X, 0.8X, 1X, 1.5X, 2X, 3X, 4X and 4.5X (7 to 45 total increases)
Optical system: Greenough system, with variable magnification zoom
Stage: Interchangeable, translucent white and white/black
Focus: Coarse anti-slip control knob
Ilumination: Transmitted and incident LED
Power supply: 110/240V, 50/60 Hz AC adapter.
Dimensions:225 x 355 x 270 mm / 808" x 13.9" x 10.6"

      • Diopter adjustment on both eyepieces.
      • Binocular head with interpupillary distance adjustment
      • Head inclined at 45 °.
      • Stage with clips.
      • Software for camera operating, capturing photo, video and digital analysis.
      • Stative, robust, reinforced and easy to transport.
      • Zoom adjustment knobs.
      • Interpupillary distance of 55 ~ 75 mm.
      • Integrated digital camera.
      • Lighting with independent intensity adjustment.

      • Education: upper grade levels
      • Industrial
      • Research

      • Dust cover.
      • Software
      • USB cable.

      10-years limited warranty
