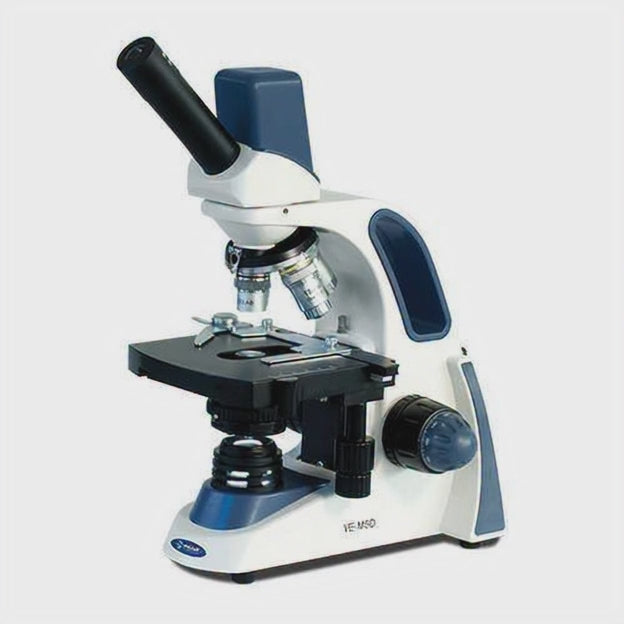

VE-M5D Digital Microscope

The VE-M5D microscope can fulfil all kinds of basic and advanced procedures in clinical laboratories. Equipped with a 1.3MP digital camera, the VE-M5D is ideal for the education sector. It facilitates group observations of microorganisms, plants as well as the identification of different types of cells, even electronic elements. Includes easy-to-use software compatible with Windows operating systems to analyze and store images on your computer.


Eyepiece: WF 10X/18 mm with block screw and pointer
Camera: 1.3 MP
Nosepiece: Quadruple
Objetives: 4X, 10X, 40X (S), 100X (S) (oil)
Optical system: Achromatic
Stage: Double layer with coaxial movement X-Y 130 x130mm / 5.1" x 5.1"
Condenser: Abbe, N.A. 1.25
Diaphragm: Iris type with filter holder.
Focus: Coarse and fine anti-slip control knob
Ilumination: LED
Operating system: Windows XP/ Vista/ 7/ 8/ 10 (32 & 64 bit)
Dimensions: 147 x 350 x 224 mm / 5.7" x 13.7" x 8.8"
Power supply: Three 1.2V AA rechargeable batteries (included) 110240V, 50/60 Hz AC adapter.


  • Monocular head
  • Head tilted 45° and rotable 360°
  • Objectives with colored rings
  • Software for viewing, capture of photo and video
  • Stage with vernier, milimeter scale,  clamp and stop with height adjustment
  • Lighting with intensity adjustment

  • Education: Basic grade levels
  • Clinical

  • AC/DC adapter.
  • Color filters green, yellow and blue
  • Dust cover.
  • Immersion oil.
  • Software
  • USB cable


10-years limited warranty.
