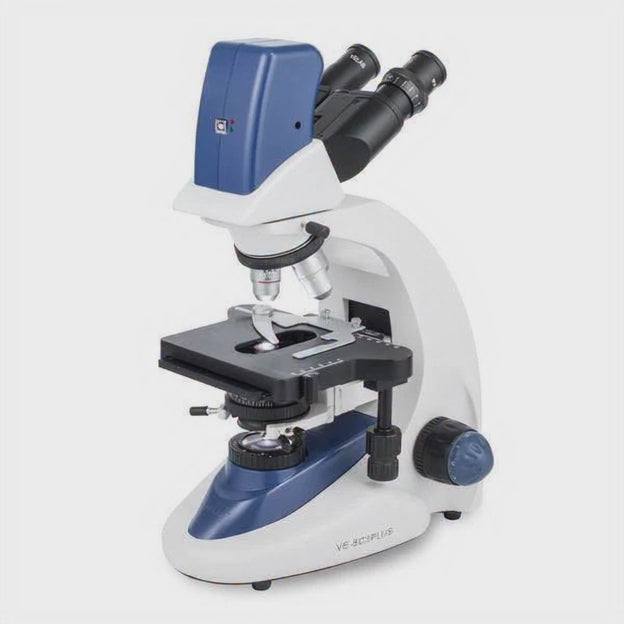

VE-BC3 PLUS Digital Microscope

The VE-BC3 PLUS digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 3.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real time and for storing captures on a computer.

Its objectives provide a wide field of observation and the Kohler LED lighting makes it a very complete and versatile device in higher education, research and diagnosis.

EYEPIECES: WF 10X/20mm with rubber eyecups and diopter adjustment on one eyepiece.
HEAD: Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88” - 2.95” and integrated 3.0MP digital camera.
NOSEPIECE: Quadruple nosepiece with anti-slip grip and click-stops.
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
STAND: Stative, robust and reinforced with epoxy paint finish.
STAGE: Two-Layer stage with X-Y coaxial movement, 5.90” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop.
CONDENSER: Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
DIAPHRAGM: Iris with filter holder.
FOCUSING: Coarse and fine anti-slip control knob with tension adjustment.
ILLUMINATION: Kohler LED with intensity control and field diaphragm in the lamp.
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter.
DIMENSIONS: 10.43″ x 17.51″ x 11.61″



  • Blue, green and yellow filters.
  • Dust cover.
  • Immersion oil.
  • Operation manual.
  • Power cord.
  • Software CD.
  • USB cable.


ACCESSORIES NOT INCLUDED

  • Phase contrast kit.
  • Polarization set.
