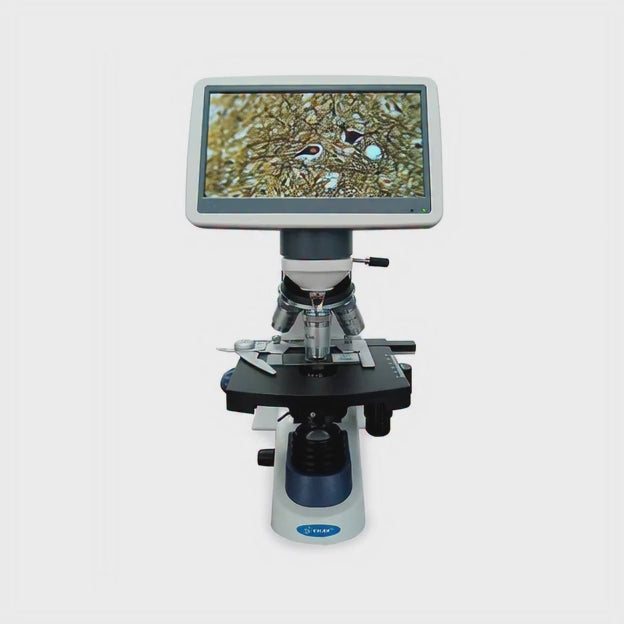

VE-M5LCD Microscope with LCD Screen
VE-M5LCD Microscope with LCD Screen
VE-M5LCD Microscope with LCD Screen
VE-M5LCD Microscope with LCD Screen

VE-M5LCD Microscope with LCD Screen

The VE-M5LCD microscope can fulfill all kinds of basic and advanced procedures. Ideal for education, as well as routine work in clinical laboratories.

Equipped with an LCD screen and a 2.0MP camera (included). The VE- M5LCD is an ideal device for teaching, analysis and group observations as well as for basic and intermediate research.

The VE-M5LCD includes easy-to- use software compatible with Windows operating systems to analyze and store images on your computer.

HEAD: Screen LCD 7”
CAMERA 2.0 mp, Digital Camera (Resolutión: 1920 x 1080 pixeles)
NOSEPIECE: Quadruple
OBJECTIVES: 4X, 10X, 40X (S) and 100X (S) (oil)
OPTICAL SYSTEM Achromatic
STAGE: Double layer with coaxial movement X-Y 130 x 130 mm / 5.1” x 5.1”
CONDENSER: Abbe, N.A. 1.25
DIAPHRAGM: Iris type with filter holder.
FOCUSING: Coarse and fine anti-slip control knob
ILLUMINATION: LED
POWER SUPPLY: Three 1.2V AA rechargeable batteries (included) 110-240V, 50/60 Hz adapter.
DIMENSIONS: 7.9″ x 15.94″ x 9.88″



  • 4GB MicroSD memory card port
  • Objectives with colored ring
  • 7 “screen with excellent image definition.
  • Lighting with intensity adjustment.
  • Stage with vernier, millimeter scale, caliper.
  • Image parameter settings such as white balance,
    brightness, contrast and saturation, among others.
  • Tools for calibration, power strip and measurement.
  • Adjustment of the field of observation, image
    rotation, grayscale.

  • Education: Basic grade levels
  • Clinical

  • AC/DC adapters.
  • Color filters green, yellow and blue
  • Dust cover.
  • Immersion oi.
  • 4GB micro SD card memory



10-years limited warranty.
