VE-BC3 PLUS PLAN IN Microscopio Digital w/ plan achromatic objectives
VE-BC3 PLUS PLAN IN Microscopio Digital w/ plan achromatic objectives
VE-BC3 PLUS PLAN IN Microscopio Digital w/ plan achromatic objectives
VE-BC3 PLUS PLAN IN Microscopio Digital w/ plan achromatic objectives
VE-BC3 PLUS PLAN IN Microscopio Digital w/ plan achromatic objectives
VE-BC3 PLUS PLAN IN Microscopio Digital w/ plan achromatic objectives
VE-BC3 PLUS PLAN IN Microscopio Digital w/ plan achromatic objectives
VE-BC3 PLUS PLAN IN Microscopio Digital w/ plan achromatic objectives

VE-BC3 PLUS PLAN IN Microscopio Digital w/ plan achromatic objectives

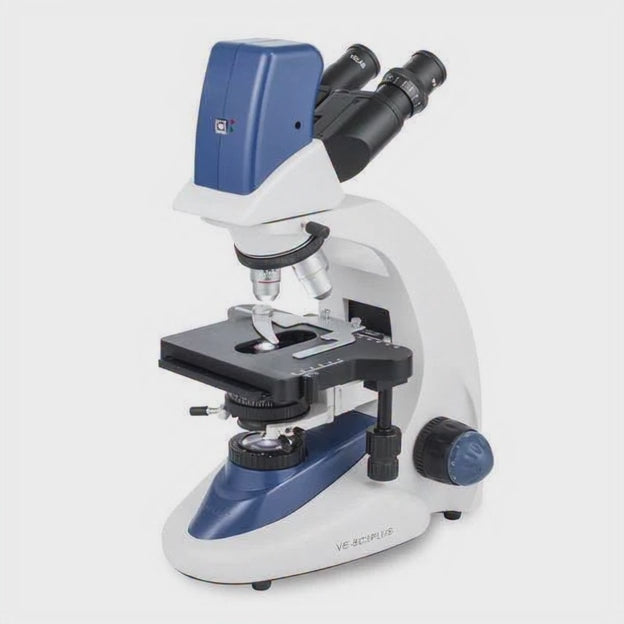

The VE-BC3 PLUS PLAN IN digital microscope was designed for professional use and offers all the virtues of a biological microscope as well as being equipped with a 5.0MP digital camera. It includes a simple operational software compatible with Windows operating systems. Ideal for the observation of images in real time and for storing captures on a computer.

Its maintenance- free plate is free of frames and lateral projections and its objectives provide a wide field of observation. the Kohler LED lighting makes it a very complete and versatile device in higher education, research and diagnosis.


Eyepieces: WF 10x/22 mm
Camera: 5.0 MP integrated
Nosepiece: Quadruple
Objectives: 4X, 10X, 40X, 100X (oil) (S)
Optical System: Infinity-corrected Plan Achromatic
Stage: Double layer with coaxial movement X-Y 150 x 132mm/5.9" x 5.1"
Condenser: Abbe, A.N. 1.25 with elevator
Diaphragm: Iris type
Focus: Coarse and fine anti-slip control knob
Ilumination: Kohler LED
Operating system: Windows XP/ Vista/ 7/ 8/ 10 (32 & 64 bit).
Dimensions: 180 x 445 x 295 mm / 7.0" x 17.5" x 11.6"
Power supply: Three 1.2V AA rechargeable batteries (included) 110/240V, 50/60 Hz AC adapter.



  • Diopter adjustment in an eyepiece.
  • Stative, robust, reinforced and easy to transport.
  • Siedentopf type Binocular Head.
  • Lighting with intensity adjustment and field diaphragm in lamp.
  • Head inclined at 30 ° and rotatable 360°
  • Interpupillary distance of 48 ~ 75 mm.
  • Stage with vernier, millimeter scale, caliper and stop with height adjustment.
  • Objectives with colored rings.
  • Integrated digital camera.

  • Education: Upper grade levels
  • Research
  • Clinical

  • Blue, green and yellow filters.
  • Dust cover.
  • Immersion oil.
  • Power cord.
  • Software
  • USB cable.
  • Stage micrometer


10-years limited warranty.
