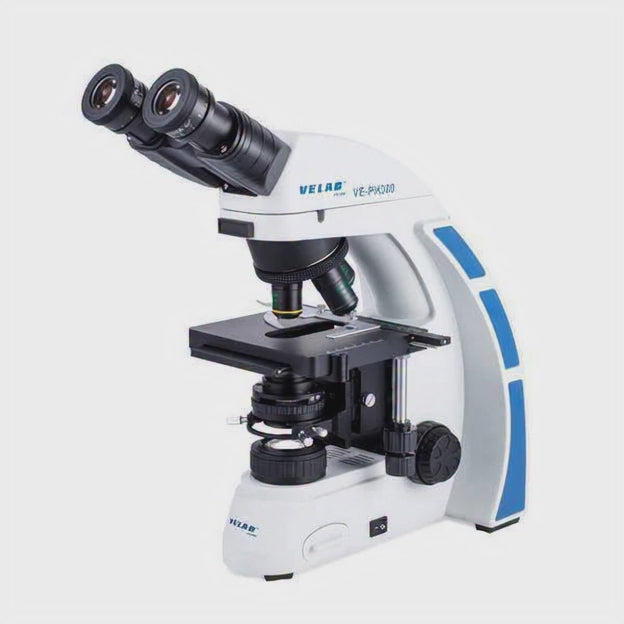

The VE-PH300 phase contrast microscope was designed for professional use that allows immediate exams. It is used in biological areas for the observation of fresh samples without the need of applying stains that can damage their structure.

Used in the observation of cells and tissue, fresh blood analysis, quantification of microorganisms and parasites in fluids and tissues. Applicable in biological areas such as physiology, pathology, pharmacology and medicine. It has 4 phase rings and an observation position for a clear field. It has excellent optical quality components and highly efficient LED illumination.



EYEPIECES: PL 10x/20 mm 3
NOSEPIECE: Quadruple
OBJECTIVES:PH10X, PH20X, PH40X, PH100X (oil( (S)
OPTICAL SYSTEM: Infinity corrected plan achromatic
STAGE: Double layer with coaxial movement X-Y, 150-140 mm / 5.9" x 5.5"
CONDENSER: Abbe, A.N. 1.25 Slot for placing sheets for phase contrast
DIAPHRAGM: Iris type
FOCUS: Coarse and fine anti-slip control knob ( precision 0.001 mm)
ILUMINATION: Kohler LED 3W
POWER SUPPLY: 110/240V, 50/60 Hz AC adapter
DIMENSIONS: 185 x 396 x 290 mm / 7.2" x 15.5" x 11.4"

  • Diopter adjustment on both eyepieces.
  • Gemel type Binocular Head with 360° rotable eyepiece tube.
  • Plates with vernier, millimeter scale and calipers.
  • Objectives with phase rings, for phase contrast, and colored rings, for identification.
  • Optional accessories for darkfield, polarisation and fluorescence.
  • Phase-contrast by sliders coupled to the condenser.
  • Interpupillary distance of 50 - 75 mm.
  • Head inclined at 30 °.
  • Stative, robust and reinforced. Easy to transport.
  • Illumination with intensity and diaphragm adjustment field in the lamp.
  • Optical correction PL, for the best viewing.
  • Phase-contrast by sliders coupled to the condenser.

  • Education: Uper grade levels
  • Research
  • Clinical

  • Slider for phase contrast 10X/40X and 20X/100X
  • Dust cover.
  • Centered telescope.
  • Immersion oil.
  • Power cord.

    10-years limited warranty
